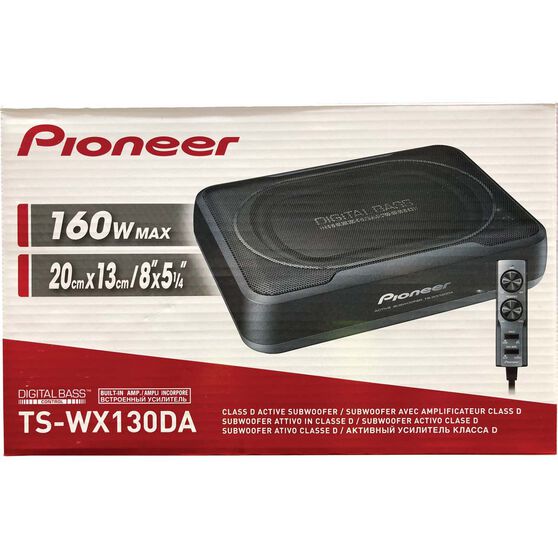

PIONEER TS-WX130DA - Compact Active Subwoofer

Powerful Amplified Subwoofer
Combines a built-in 160-watt Class D amplifier, aluminum cone specially designed acoustic suspension enclosure, and Digital Bass Control, a technology developed by Pioneer to tailor frequency response and increase the performance, is compact while producing deep, powerful bass.

Digital Bass Control
Digital Bass Control provides two selectable listening modes, Deep and Dynamic, enhancing system optimization and tuning the output to complement various musical styles and vehicle types.

Installation Flexibility
Extremely compact, measuring 11 inches x 7-7/8 inches with a height of only 2-3/4 inches, and is designed to be installed in various small, tight spaces. With the ability to fit under seats, behind seats or inside small storage compartments, the features a wide range of vehicle applications

KEY FEATURES
System Type: Powered
Sensitivity (1W/1m): DEEP: 95 dB / DYNAMIC: 100 dB
Frequency Range: DEEP: 20 Hz to 200 Hz, DYNAMIC: 40 Hz to 160 Hz
Continuous Power handling (RMS) - Watts 50 Watts
Maximum Peak Power Handling - Watts 160 Watts
Speaker Grill: Fully Covered Steel Mesh Grille
Built In Amp: Yes
Amp Max Power Output: 160 Watts
Amp DIN: 50 Watts
Input Level (@ Gain Max) RCA: DEEP 60mV+60mV/22kOhm, DYNAMIC 30mV+30mV/22kOhm
Input Level (@ Gain Max) Speaker Line: DEEP 1.2V+1.2V/5KOhm, DYNAMIC 0.6 V+0.6 V/5kOhm
Power Source: DC 14.4V
Amp Max Current Consumption: 4.3 A
Amp Grounding: Negative
Shape: Oval
